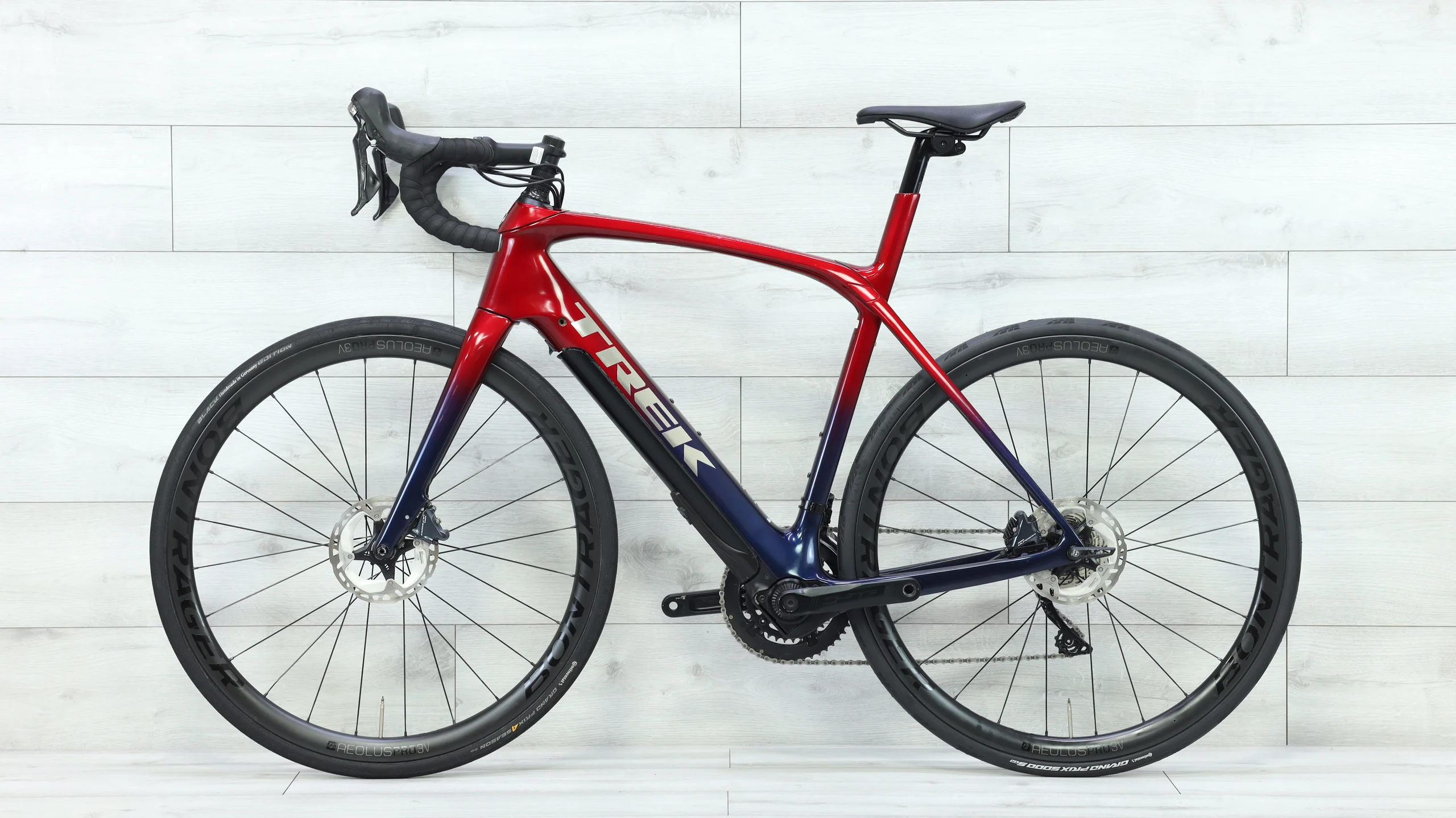

Trek Domane + LT Project One Road E-Bike - 2020, 56cm
$3199.00$2899.00
A carbon drop-bar electric bike, the Trek Domane + LT Project One is made for riders who desire a real road cycling experience with an added boost. When you need it, like when you're riding into a headwind or beating your friend up a climb, the smooth and effective Fazua drive system kicks things up a level, but when it's not in use, it doesn't drag or hold you back.
The Domane+ LT is built around a philosophy of "you, only faster," and its key features are all in service of that goal.
Lightweight 500 Series OCLV Carbon Frame: The frame is constructed from Trek's high-end 500 Series OCLV Carbon, providing an exceptional balance of light weight, stiffness, and durability . It features the iconic Domane endurance geometry for a stable, comfortable, and confidence-inspiring ride on long days in the saddle .
Fazua Evation Drive System: At its heart is the innovative Fazua Evation drive system . This mid-drive motor (250W, up to 60Nm of torque) is celebrated for its smooth, natural-feeling power delivery and near-silent operation. A key feature is that the motor offers virtually no resistance when you're riding unassisted or above the assist limit .
Removable Drive Pack: The entire 250Wh battery and motor unit (the "Drive Pack") can be easily removed from the downtube and replaced with a cover (not included with all models) . This transforms the bike into a standard, albeit slightly heavier, road bike weighing approximately 10.7kg (23.6 lbs) .
IsoSpeed Comfort Technology: The frame features both front and adjustable rear IsoSpeed decouplers . This allows the seat tube and top tube to flex independently, absorbing fatiguing road vibrations and smoothing out rough pavement for a more comfortable ride over long distances .
High-Performance 2x11 Drivetrain: It is equipped with a Shimano Ultegra R8000 groupset, offering crisp, reliable, and professional-level shifting with a wide gear range (50/34T chainrings and an 11-34T cassette) perfect for tackling varied terrain .
Project One Customization: As a Project One model, this bike could be commissioned with custom paint schemes, including premium ICON finishes, and select component upgrades, allowing the buyer to create a truly unique and personalized machine .
A proper fit is paramount for performance and comfort. Here are the detailed specifications and geometry for the 2020 Domane+ LT Project One in size 56cm.
Rider Height Recommendation: The size 56cm is generally recommended for riders between approximately 176cm and 181cm (5'9" to 5'11") .
Key Geometry & Size Details (56cm)
Measurement | Value | Source |
|---|---|---|
Frame Material | 500 Series OCLV Carbon | |
Fork Material | Domane SL Carbon | |
Weight (with motor/battery) | Approx. 13.6 kg (29.9 lbs) | |
Weight (without motor/battery) | Approx. 10.7 kg (23.6 lbs) | |
Wheelbase | 1021 mm | |
Head Tube Angle | 71.9° | |
Seat Tube Angle | 73.1° | |
Chainstay Length | 440 mm | |
Bottom Bracket Drop | 78 mm | |
Fork Offset (Rake) | 50 mm | |
Standover Height | 766 mm | |
Stack | Not specified in results | |
Reach | Not specified in results |
Component | Specification | Source |
|---|---|---|
Frame | 500 Series OCLV Carbon, integrated Fazua Evation system, tapered head tube, front & rear IsoSpeed, internal routing, flat mount disc, fender mounts, 148x12mm thru axle | |
Fork | Domane SL Carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle | |
Motor | Fazua Evation Drive Pack, mid-drive, 250W, 60 Nm torque, 25 km/h (15.5 mph) max assist | |
Battery | Fazua Evation 1.0, 250Wh, integrated in downtube | |
Display/Remote | Fazua Evation touch remote (integrated into top tube) | |

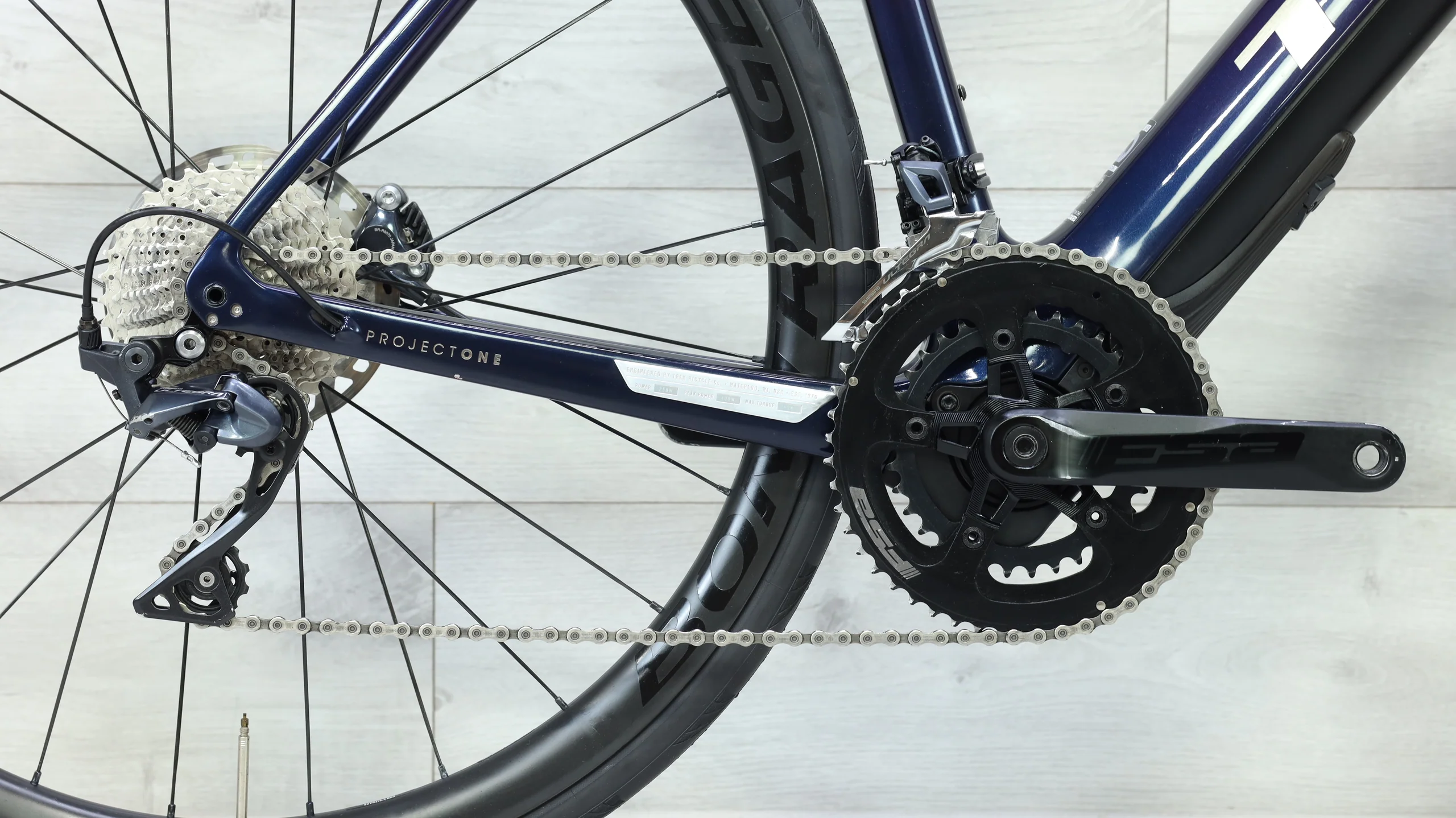

Rear Derailleur | Shimano Ultegra R8000, long cage, 11-speed | |
Front Derailleur | Shimano Ultegra R8000, braze-on | |
Shifters | Shimano Ultegra R8020, 11-speed | |
Cassette | Shimano Ultegra HG800-11, 11-34, 11-speed | |
Chain | Shimano Ultegra HG701, 11-speed | |

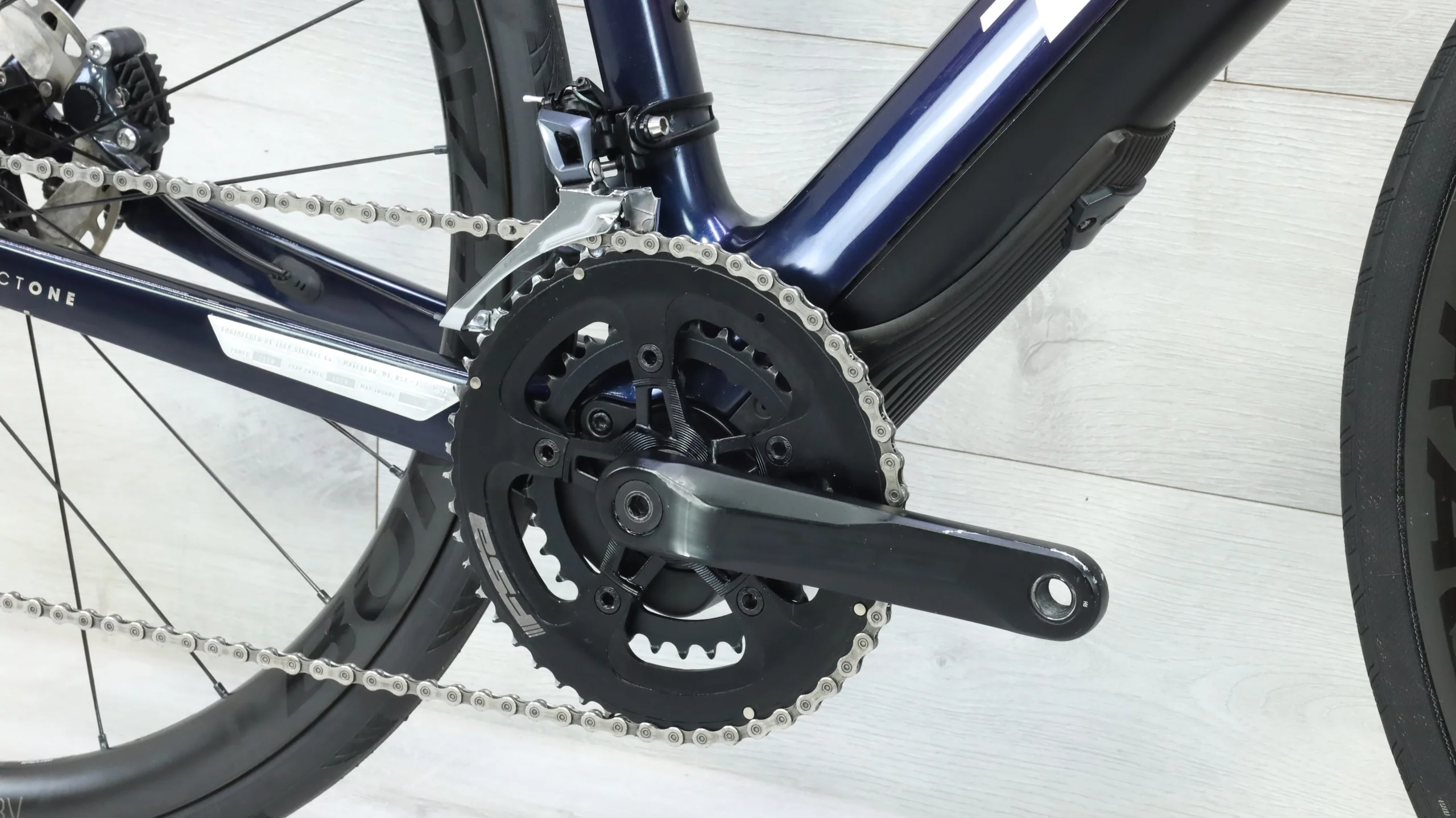

Crankset | FSA Alloy for Fazua, 50/34T chainrings, 172.5mm length | |
Brakes | Shimano Ultegra R8070 hydraulic disc | |
Brake Rotors | Shimano, 160mm, centerlock | |
Handlebar | Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, 42cm width | |
Stem | Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length | |
Seatpost | Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, short length | |
Saddle | Bontrager Arvada Comp, steel rails, 138mm width | |
Wheelset | DT Swiss G1800, tubeless compatible, 100x12mm front, 148x12mm rear | |
Tires | Bontrager R3 Hard-Case Lite, Tubeless Ready, 700x32c | |
Lights | Integrated front and rear lights (battery-powered) |
