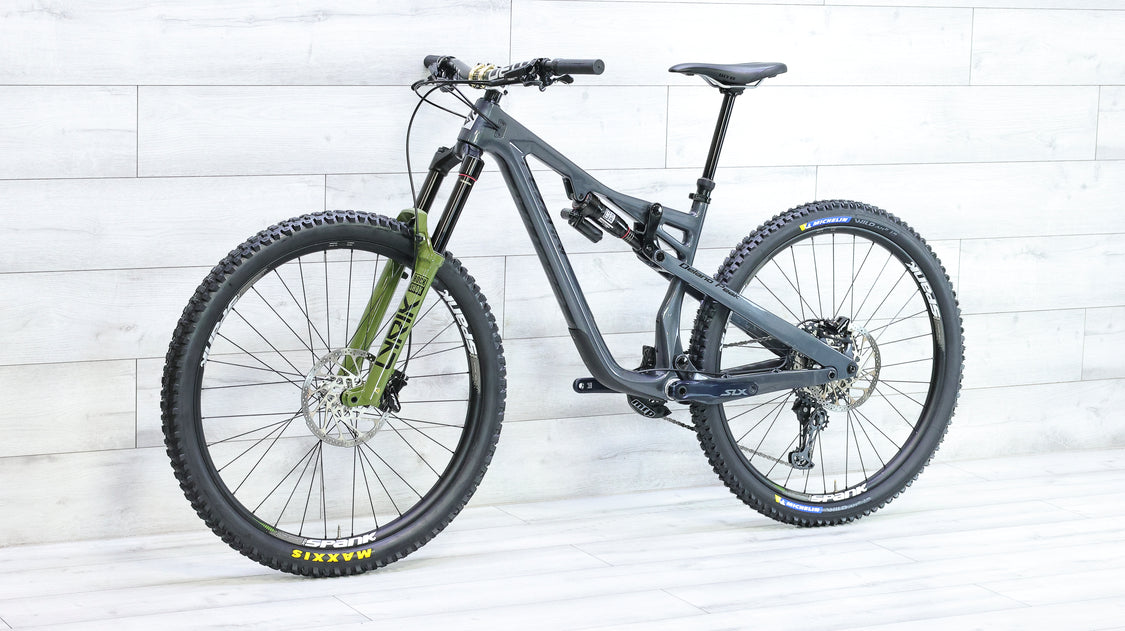

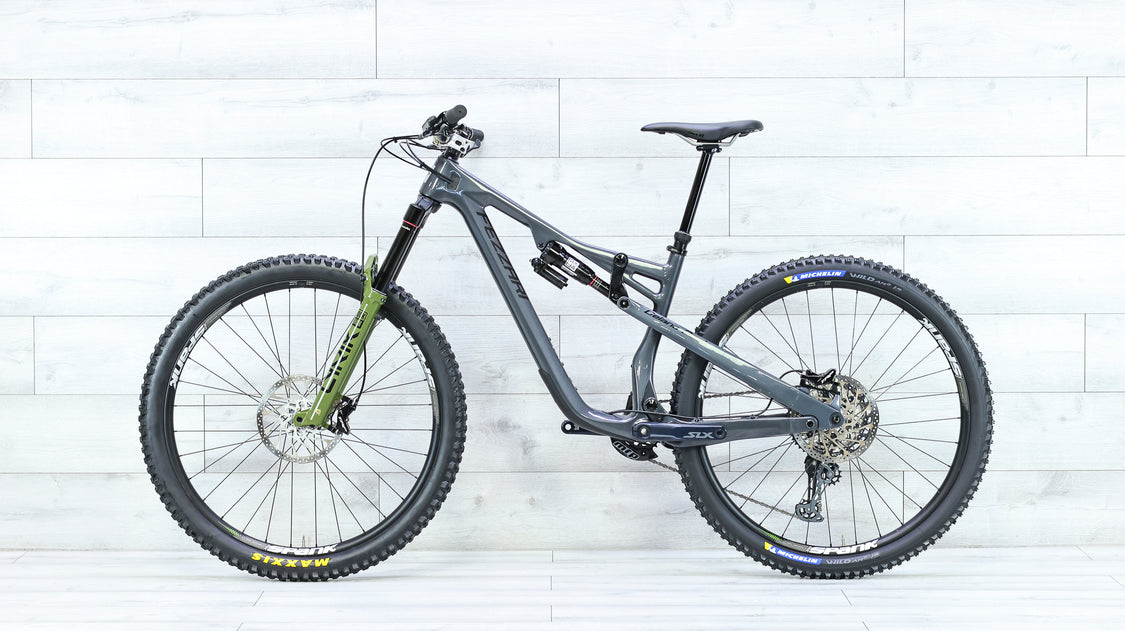

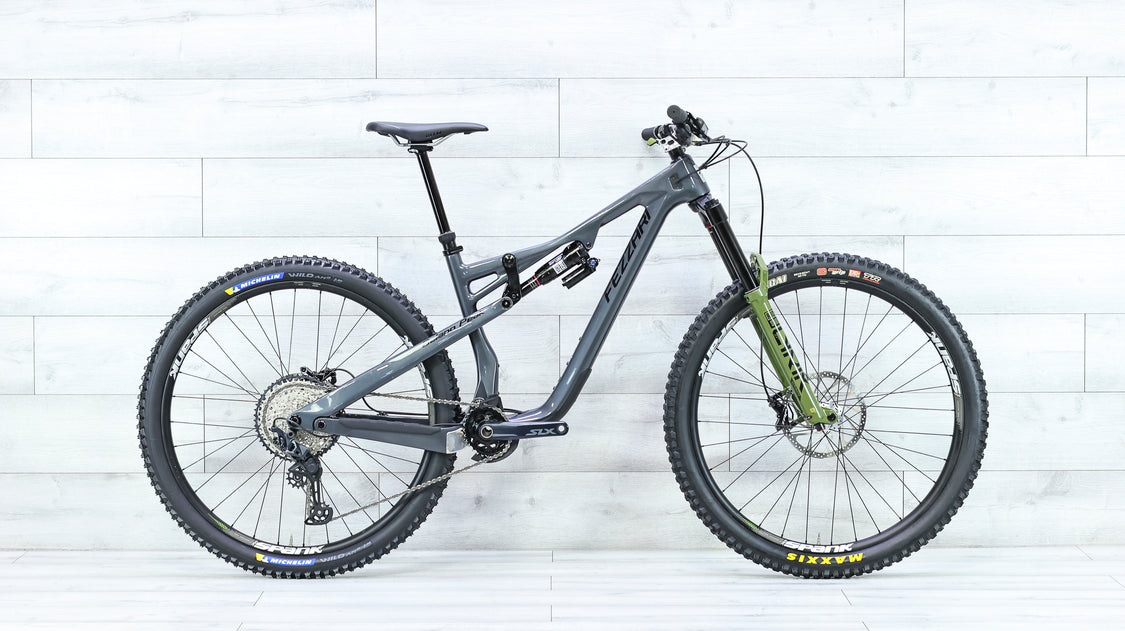

The Fezzari Delano Peak is designed for riders who seek a trail bike that can confidently descend and climb. Its contemporary carbon frame creates a balanced feel that thrives on long days in the mountains and on fast, difficult singletrack by combining quick pedalling with capable suspension. The design keeps the route dynamic and manoeuvrable through tight turns and undulating terrain while favouring stability when the path becomes steep. The Delano Peak offers a calm, capable ride that motivates you to continue exploring further down the route, whether you're pushing for major climbs or opening it up on the descent.

• Frame & Suspension: CleanCast Carbon Fiber frame with 135mm of rear travel, designed to pair with a 150mm travel fork .

• Modern Geometry: Features a slack head tube angle for stability on descents and a steep seat tube angle for efficient climbing .

• Frame Details:

  • "Future-Proof" Internal Routing: Cables are routed internally on the downtube and secured with "CleanCatch" guides to prevent rattling .

  • Threaded Bottom Bracket: Uses a standard BSA threaded bottom bracket for easy maintenance .

  • Universal Derailleur Hanger (UDH): Compatible with the latest drivetrain standards .

  • Water Bottle Mounts: The medium frame accommodates two water bottle cages inside the front triangle .

• Custom Fit: Fezzari's "23-Point Custom Setup" process allows buyers to provide their measurements to ensure the bike is built with the correct stem, handlebar, and saddle for an optimal fit .

• Rider Height Recommendation: The 2023 Fezzari Delano Peak in size medium is generally recommended for riders between 168 cm and 180 cm (approximately 5'6" to 5'11") .

• Frame Material: CleanCast Carbon Fiber .

• Wheel Size: 29" .

• Rear Travel: 135mm .

• Fork Travel: 150mm

Delano Peak Comp Shimano

This build represents a high-value, mid-range specification .

• Suspension: DVO Diamond D1 fork (150mm) / DVO Topaz T2 rear shock .

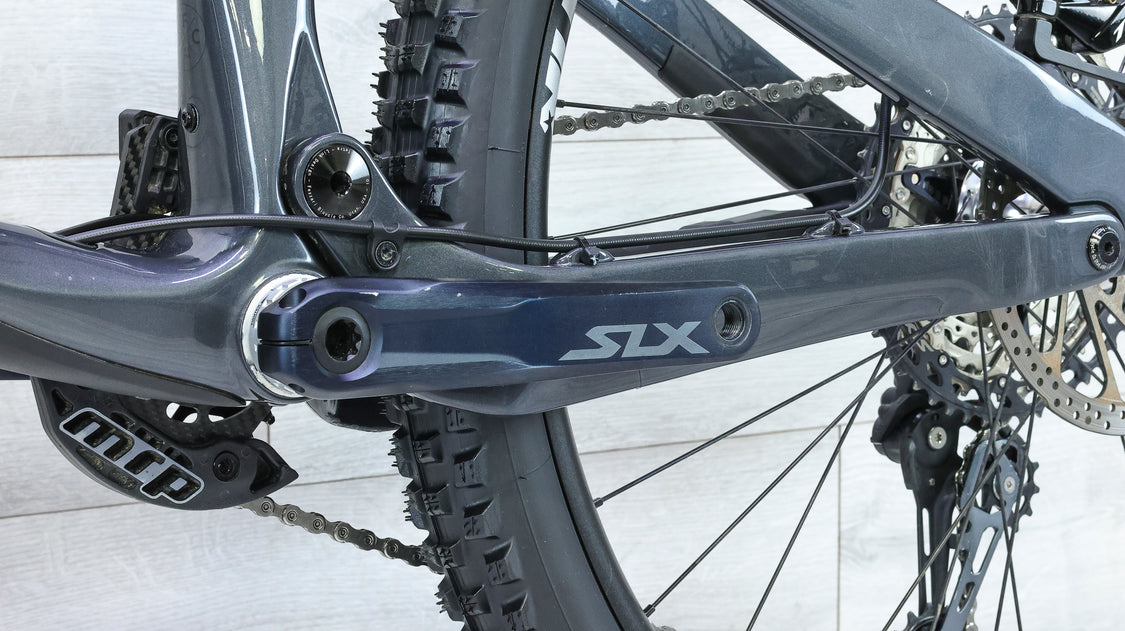

• Drivetrain: Shimano SLX 12-speed .

• Brakes: SRAM DB8 hydraulic disc with 180mm rotors .

• Cockpit: Fezzari Charger CNC stem, Fezzari Team 35mm bar (custom sized), X-Fusion Manic dropper post (custom sized), WTB Volt saddle .

• Wheels & Tires: WTB i29 rims on Bear Pawls hubs / Maxxis Minion DHF (front) and Aggressor (rear) 29x2.5" tires .

Delano Peak Pro

This build is a step up, featuring higher-end performance components .

• Suspension: Fox Factory 36 Float fork (150mm) / Fox Float X rear shock .

• Drivetrain: SRAM X01 Eagle 12-speed .

• Brakes: Hydraulic Disc (specific model not listed)
