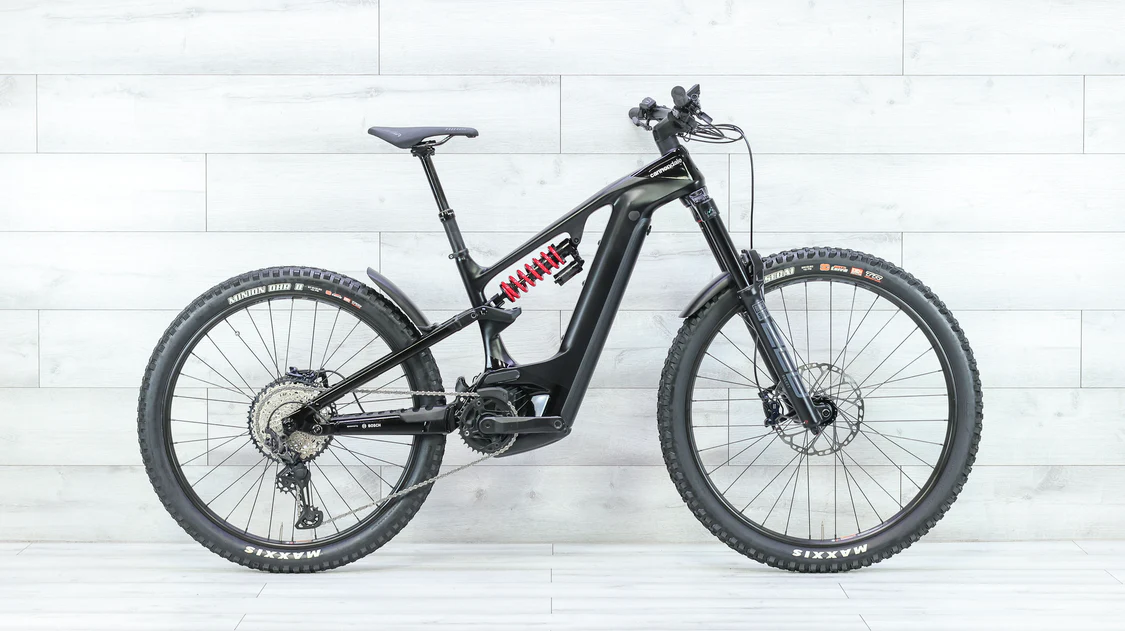

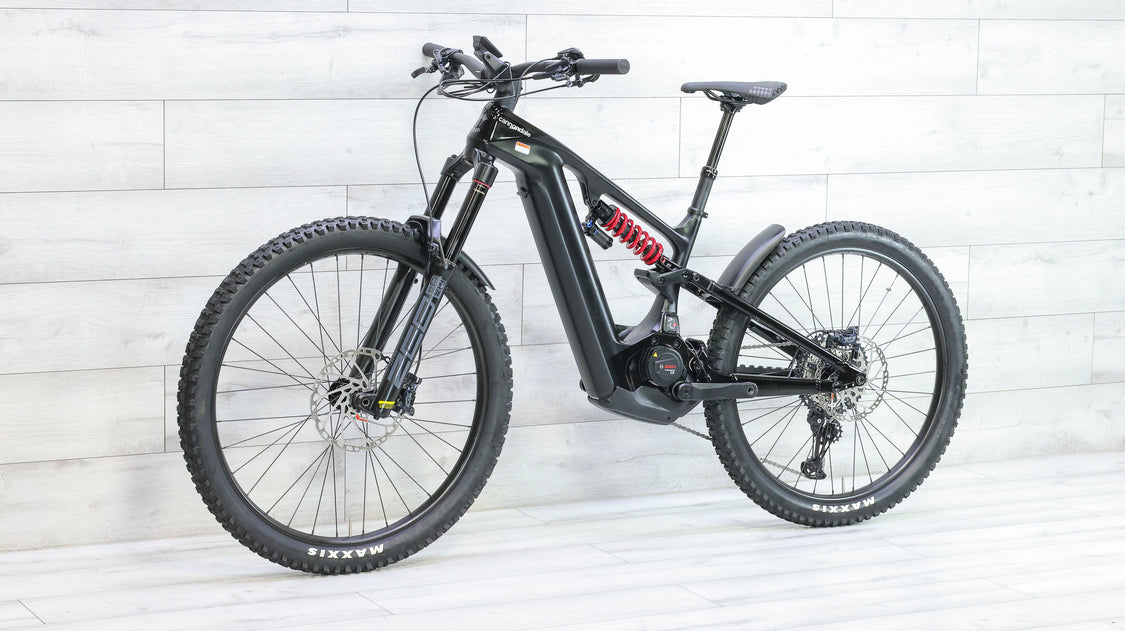

Cannondale Moterra Neo Carbon LT 2 Mountain E-Bike - 2023, Small
$3799.00$2999.00
A long-range e-MTB designed for challenging terrain is the Cannondale Moterra Neo Carbon LT 2. Its progressive suspension platform and carbon frame give it a confident, planted feel on steep descents while allowing it to handle difficult portions with poise. The long-travel configuration is ideal for enduro-style riding and challenging trail systems because it is made to withstand large strikes and repeated impacts. The Moterra Neo Carbon LT 2 enables riders handle longer days and difficult climbs without compromising downhill capability thanks to a strong mid-drive motor that offers smooth, natural-feeling assistance. This powerful, hard-charging electric mountain bike is designed for riders who desire more laps, more range, and greater self-assurance on challenging trails.
The Moterra Neo Carbon LT 2 is built around a few core technologies that define its character:
Bosch Smart System: Powered by the Bosch Performance Line CX motor (85Nm torque) and a massive 750Wh PowerTube battery, offering class-leading range and natural-feeling power delivery .
Long-Travel Suspension: Features 170mm of travel up front and 165mm in the rear, paired with a RockShox Zeb Select fork and a RockShox Deluxe Select+ coil shock for a plush, supportive, and durable feel on big hits .
Mixed "Mullet" Wheel Setup: Combines a 29-inch front wheel for roll-over ability and a 27.5-inch rear wheel for agility and a more playful feel, complementing the long travel perfectly .
Proportional Response Design: Cannondale's unique approach where the suspension kinematics and pivot locations are tuned specifically for each frame size. This ensures that a smaller rider on a size Small gets the same balanced suspension performance as a larger rider on an XL .
Hybrid Frame Construction: Features a sophisticated carbon fiber front triangle for weight savings and stiffness, paired with a durable SmartForm C1 alloy swingarm .
Getting the geometry right is critical for confidence and control. Here are the detailed specifications and geometry for the 2023 Cannondale Moterra Neo Carbon LT 2 in size Small.
Rider Height Recommendation: The size Small is generally recommended for riders between 157 cm and 166 cm (approximately 5'2" to 5'5") .
Key Geometry Details (Size Small)
Measurement | Value |
|---|---|
Reach | 426 mm |
Stack | 623 mm |
Head Tube Angle | 64.0° |
Seat Tube Angle (Effective) | 76.5° |
Seat Tube Length | 400 mm |
Chainstay Length | 452 mm |
Wheelbase | 1217 mm |
Bottom Bracket Height | 356 mm |
Bottom Bracket Drop | 11 mm |
The build kit on the LT 2 is selected for durability and performance right out of the box .
Component | Specification |
|---|---|
Frame | Moterra Neo Carbon front triangle, SmartForm C1 Alloy swingarm, 165mm travel, Proportional Response tuned |
Fork | RockShox Zeb Select, Charger RC damper, DebonAir, 170mm, 15x110mm |
Rear Shock | RockShox Deluxe Select+, Coil, 2-Pos mode adjust |
Motor | Bosch Performance Line CX, 250W, 85Nm |
Battery | Bosch PowerTube 750Wh |
Display/Remote | Bosch Kiox 300 / LED Remote |

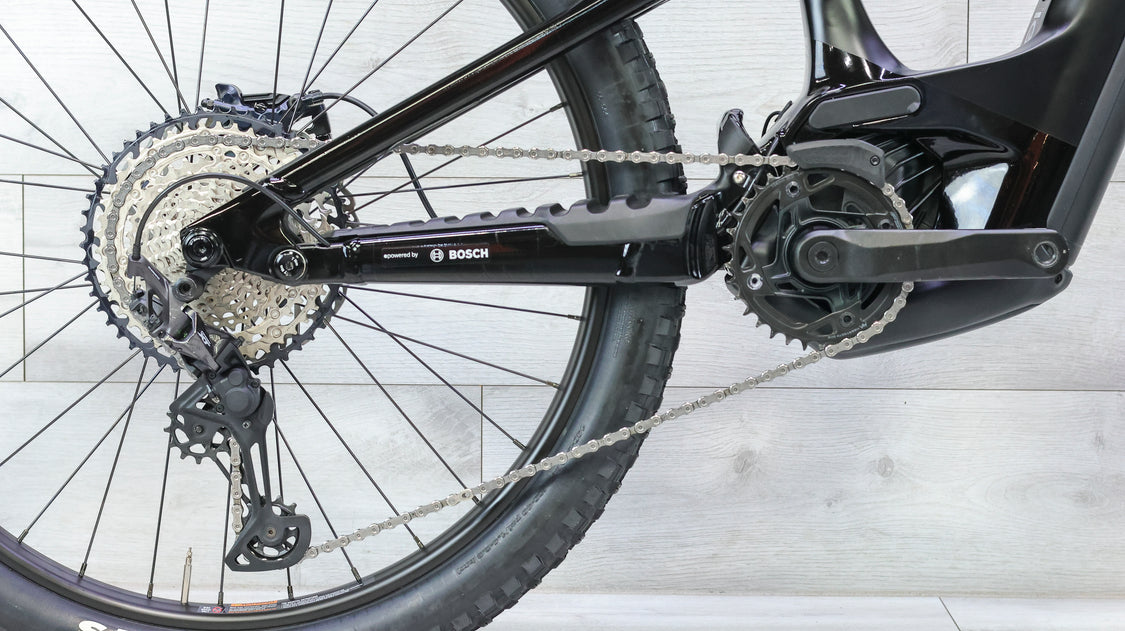

Rear Derailleur | Shimano XT, 12-speed |
Shifters | Shimano SLX, 12-speed |
Cassette | Shimano SLX, 10-51T, 12-speed |
Crank | FSA Bosch E-bike, 160mm, 34T |
Brakes | Magura MT5 4-piston hydraulic disc |
Brake Rotors | Magura MDR-P, 220mm front / 203mm rear |
Handlebar | Cannondale 3 Riser, 6061 Alloy, 25mm rise, 800mm width |
Stem | Cannondale 2, 6061 Alloy, 35mm, 0° |
Seatpost | Cannondale DownLow Dropper, internal routing, 31.6mm, 125mm travel (Size Small) |
Saddle | Fabric Scoop Shallow Sport, steel rails |
Wheelset | WTB ST i30 TCS rims, 32h, with Formula (front) and Shimano MT410 (rear) hubs |
Tires | Front: Maxxis Assegai, 29 x 2.6", 3C, EXO+, tubeless ready |
Rear: Maxxis DHR II, 27.5 x 2.6", 3C, EXO+, tubeless ready |
